Clinics in diagnostic imaging (195)

CASE PRESENTATION

A 46-year-old man presented with a six-month history of lumps in the sole of his left foot. They were associated with pain upon bearing weight. He had a history of Dupuytren’s contracture involving his right hand, which had been surgically treated 11 years ago. Physical examination revealed two palpable plantar lumps, one firm and one tender, in his left foot with no overlying skin changes. Initial plain radiographs showed no abnormality. He subsequently underwent magnetic resonance (MR) imaging (Fig. 1). What do the images show?

Fig. 1

(a) Sagittal T1-W, (b) axial T2-W fat saturation and (c) sagittal proton density-weighted fat saturation MR images of the left foot.

IMAGE INTERPRETATION

Non-contrast-enhanced MR imaging of the left foot revealed two sub-centimetre nodules (arrowheads, Fig. 1a–c) along the medial band of the plantar fascia (i.e. aponeurosis). The nodules are isointense relative to muscle on the T1-weighted sequences (Fig. 1a) and isointense to slightly hyperintense on T2-weighted sequences (Fig. 1b). They are hyperintense on the proton density-weighted and fat-saturation sequences (Fig. 1c).

DIAGNOSIS

Plantar fibromatosis.

CLINICAL COURSE

As the nodules caused symptoms, the patient opted for surgical management. A wide excision was performed with good postoperative recovery. No nodule recurrence was reported one year after surgical excision. Histological evaluation of the excised nodules showed dense fibrocollagenous fascial tissues with nodular and infiltrative proliferation of bland spindle cells in large interlacing fascicles, consistent with plantar fibromas.

DISCUSSION

The plantar fascia, or aponeurosis, is a strong layer of fibrous tissue in the sole of the foot. It stabilises the medial longitudinal arch of the foot and consists of three bundles (or bands): medial, central and lateral. Posteriorly, it is attached to the medial calcaneal tubercle. Anteriorly, it has a complex insertion at the level of the metatarsal heads.(1)

Plantar fibromatosis, or Ledderhose disease, is a hyperproliferative disorder of mature fibroblasts that causes nodular thickening of the plantar aponeurosis.(2) Although benign, it may invade the overlying skin or deeper structures such as the adjacent plantar muscles and tendon sheaths.(3) There is no clear correlation between Ledderhose disease and malignant transformation. However, our search of the English medical literature revealed one reported case of squamous cell carcinoma arising from long-standing plantar fibromas.(4)

The exact aetiology of plantar fibromatosis is unknown; however, it is related to palmar fibromatosis (i.e. Dupuytren’s contracture)(2,5) and fibromatosis-like conditions such as Peyronie’s disease.(2,5) Several conditions proposed as risk factors to developing plantar fibromatosis include: underlying genetic predisposition; prior history of trauma; and underlying medical conditions such as diabetes mellitus and epilepsy.(2,3,5,6) Disease onset typically occurs between the ages of 30 and 50 years.(3) However, children and pre-adolescents may be affected.(5) Higher incidences of the condition have been reported in Caucasians(4) and in men.(2,3)

Patients usually present with a palpable slow-growing nodule at the medial aspect of the sole. Some may complain of multiple nodules. There is bilateral involvement in about 25%–50% of patients.(2) Patients with larger nodules may also report pain after long periods of walking or standing.(2,3) Pain occurs in two ways: (a) from nodule compression upon weight bearing, which is further aggravated by the presence of surrounding soft tissue inflammation, and (b) from local invasion of the adjacent muscle or neurovascular structures.(3) On physical examination, nodules are typically firm and fixed, located at the medial plantar mid-foot, and may be adherent to the skin.(3) Contractures are an uncommon feature in plantar fibromatosis, as opposed to palmar fibromatosis.(3)

Although the diagnosis of plantar fibromatosis is generally established clinically, imaging helps to improve diagnostic confidence. The value of imaging to the diagnostic work-up is in its ability to identify and distinguish plantar fibromas from other conditions with similar presentations. It is able to uncover occult conditions that might change the clinical course and management of the patient. In imaging evaluation, an initial radiograph is usually not required(2) as it is frequently normal.(3) However, radiographs may be helpful when there is clinical suspicion of bony abnormalities such as fractures, exostoses or other bone-forming neoplasms. The utility of radiography in plantar fibromatosis is in detecting contour-deforming soft tissue masses and, in larger nodules, helping to identify the presence of adjacent bony erosions. As such, the modalities of ultrasonography (US) and MR imaging are favoured over plain radiography for diagnosis as they provide superior soft tissue contrast.

Given the superficial nature of the nodules, US is a useful and inexpensive modality for evaluation and characterisation. US provides real-time dynamic imaging with good spatial resolution. It can differentiate solid from cystic structures within soft tissue. More importantly, US provides direct patient interaction; the clinician or radiologist can immediately correlate sonographic finding with the patients’ symptom. Sonographically, the normal plantar aponeurosis appears as a uniform band of echogenic fibres within a hypoechoic-to-anechoic background, giving rise to its fibrillar pattern. In contrast, fibromas appear as fusiform hypoechoic nodules on the plantar surface or within the substance of the plantar aponeurosis.(7) For accurate diagnosis, it is important to visualise nodule continuity with the plantar aponeurosis(8) (Fig. 2). Larger lesions (> 10 mm) have a rounder appearance and are more likely to demonstrate inhomogeneous echoes(7) (Fig. 3a). Nodules may also show increased vascularity on colour Doppler evaluation(3,8) (Fig. 3b). Small intranodular cystic components causing posterior acoustic enhancement may also be present; Haun et al in 2011 reported a case of plantar fibroma that showed myxoid stromal degeneration and cysts histologically.(9)

Fig. 2

A 43-year-old man presented with left foot pain. Longitudinal US image of the sole of the medial left foot shows the uniform fibrillar structure of the normal plantar aponeurosis. There is a hypoechoic fusiform nodule (arrow) that is inseparable from the plantar aponeurosis, in keeping with a plantar fibroma.

Fig. 3

A 53-year-old man presented with a plantar lump. (a) Transverse greyscale and (b) colour Doppler US images of the sole of his right foot show a heterogeneous nodule arising from the medial plantar aponeurosis (arrow), which shows mild increased internal vascularity on colour Doppler imaging. The nodule was subsequently excised, and the diagnosis of plantar fibroma was confirmed histologically.

Sonoelastography is useful as a supplementary technique in musculoskeletal imaging. It provides qualitative information about the relative elasticities of soft tissues by measuring how they respond to applied stresses, using either shear-wave propagation or strain application (i.e. compression). The former technique calculates the velocity of shear-wave propagation in tissues, then converts them into colour-coded maps, called elastograms, that assign relative local tissue elasticity (or ‘stiffness’). The latter technique compares differences in time for the ultrasonography waves to return to the transducer after manual compressive pressures are applied. Conventionally, the colour red indicates the presence of more elastic (or ‘soft’) tissues, while blue indicates less elastic (or ‘stiff’) ones; those of intermediate relative stiffness are assigned a colour within the spectrum of green or yellow. Recently, several studies have demonstrated the usefulness of sonoelastography in differentiating between benign and malignant soft tissue masses and in characterising the type of benign masses.(10) Its use in plantar fasciitis showed that the fascia in affected individuals was more elastic (or ‘softer’) compared to healthy subjects. While the utility of sonoelastography in plantar fibromas has yet to be established, we have anecdotally demonstrated that the nodules are less elastic (or ‘stiffer’) relative to normal fascia, likely attributable to their fibrous composition (Fig. 4). Taljanovic et al demonstrated in 2017 that fibromas, albeit the palmar variant, show increased relative stiffness when compared to the normal tendon sheath from which they arise.(11) We feel that sonoelastography is a promising technique to help discern between normal and abnormal fascia, although local studies are needed to establish its usefulness.

Fig. 4

A 57-year-old man presented with pain in the plantar aspect of his left midfoot. Longitudinal US image with dual modalities (left: greyscale, right: strain sonoelastography) shows two plantar fibromas (arrows) with reduced relative elasticities (blue) compared to the adjacent normal plantar fascia (green).

On MR imaging, the normal plantar aponeurosis is homogeneously hypointense on both T1-weighted and T2-weighted sequences. Plantar fibromas may be heterogeneous, hypointense or isointense (relative to muscle) on both T1-weighted and T2-weighted sequences, depending on the extent of fibrous tissue composition(1,12,13) (Fig. 5). They are typically hyperintense on proton density-weighted fat saturation sequences(3) (Fig. 1c). Nodules that are more aggressive show invasion of deeper structures and are frequently hyperintense on T2-weighted sequences; it is postulated that this is due to higher cellular matrix components.(13) The nodules show variable enhancement after administration of intravenous gadolinium-based contrast media(12,13) (Fig. 6). Contrast may improve the sensitivity of detecting smaller nodules, especially where small hypointense nodules may be difficult to differentiate from low-signal aponeurosis on non-contrast-enhanced images.(1,7) Such nodules may be clinically missed, even with sonographic evaluation. Finally, MR imaging is superior in evaluating the extent of deep tissue invasion and is the modality of choice when this is clinically suspected.(13)

Fig. 5

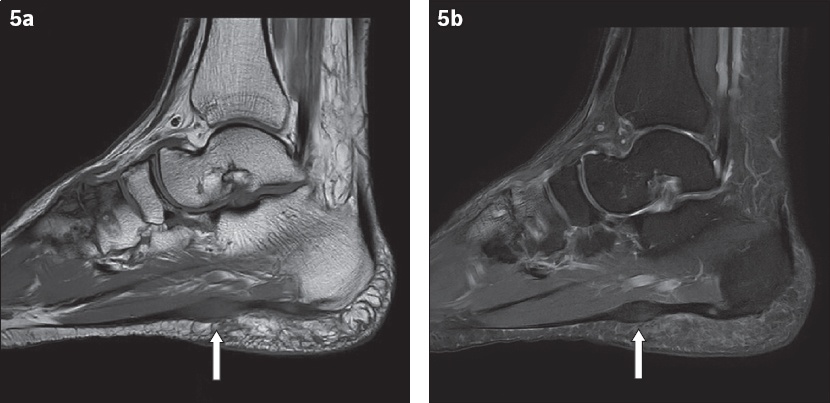

A 56-year-old woman presented with a palpable and painful lump in the plantar aspect of her right foot. (a) Sagittal T1-W and (b) T2-W fat-saturation MR images of the right foot show a fusiform nodule with intermediate T1-W and T2-W signal centred at the medial plantar fascia (arrows), consistent with plantar fibroma.

Fig. 6

A 58-year-old man presented with a six-month history of a right plantar fibroma (arrows). (a) Sagittal and (b) coronal T1-W MR sequences of the left foot show an isointense nodule at the medial aspect of the plantar fascia. This nodule is heterogeneously hyperintense on (c) sagittal and (d) coronal T2-W fat saturation sequences. (e) Sagittal and (f) coronal T1-W fat saturation images show avid nodule enhancement after administration of intravenous gadolinium-based contrast media.

In the evaluation of a plantar mass and/or painful sole, there are other benign and malignant conditions that should be considered in the differential diagnoses. Benign conditions include ganglion cysts, neurogenic tumours (e.g. neurofibromas), intermetatarsal (or Morton) neuromas and mesenchymal tumours (e.g. leiomyomas). The possibility of malignant soft tissue lesions, such as rhabdomyosarcomas and liposarcomas, should be contemplated when encountering patients with more aggressive clinical presentations. Imaging, in particular MR imaging, can help confirm and differentiate plantar fibromas from the above differentials.

Other common benign conditions related to the aponeurosis include plantar fasciitis, chronic aponeurotic rupture(8) and foreign body reaction.(12) In plantar fasciitis, thickening of the aponeurosis usually occurs at its calcaneal attachment and is related to a bony plantar calcaneal spur. This contrasts with plantar fibromas, which usually arise in the plantar midfoot. A prior history of trauma may be elicited in chronic aponeurotic ruptures. A detailed clinical examination can diagnose the tear and detect the presence of surrounding midfoot oedema. Also, a chronically ruptured plantar aponeurosis may be focally thickened(8) and easily detected on US. Similarly, when a plantar foreign body is suspected, US or MR imaging can help confirm the diagnosis. Foreign bodies are typically hyperechoic on US.(12) On MR imaging, they are commonly hypointense on T1-weighted with surrounding hyperintense T2-weighted signal due to granulation tissue.(12)

Treatment for plantar fibromatosis depends on symptom severity and extent of the nodules. When pain is mild and the nodules are small and not rapidly enlarging, management is primarily conservative.(2) At this stage, orthotic inserts and anti-inflammatory medications such as nonsteroidal anti-inflammatory drugs may be prescribed to relieve pain from weight bearing. The patient may be given local steroid injections percutaneously or radiotherapy when the pain does not improve. These treatments work by decreasing fibroblastic proliferation, hence reducing the size and therefore pain that results from the nodules.(2) Surgery is reserved for patients with worsening symptoms and progressively enlarging nodules, usually after a period of conservative treatment.(2,3) Various techniques have been described for surgical removal. These include local excision, wide resection, and partial or total plantar fasciectomy.(14) However, plantar fibromas are notorious for recurring post excision due to their infiltrative growth pattern.(3,8) Their recurrence rates are also inversely proportional to the extent of excision, with the highest recurrence rates reported after local excision and lowest after total plantar fasciectomy.(5,14,15) Higher recurrence is also seen in patients with a positive family history and those with multiple nodules and bilaterality (i.e. affecting both feet)(15) – these nodules also tend to be more aggressive.(13,15) In addition to surgical therapy, adjuvant radiotherapy may help lower recurrence but may be associated with higher morbidity.(14,15) Other investigational treatment approaches that have been reported in the literature include extracorporeal shock wave therapy and anti-oestrogen therapy.(2)

In conclusion, while imaging helps to increase the physician’s confidence in diagnosing plantar fascia, it is also useful in detecting mimicking conditions that present similarly, or as a problem-solving tool in more challenging clinical encounters. More importantly, the reasons for imaging must be clear to avoid unnecessary costs related to increasingly expensive evaluations.
